TIG Welding Torches for Manual Welding Applications

The right welding torch for every application
– with just one hosepack

That’s possible because the new TIG welding torches can be individually adjusted to suit your personal preferences or the application at hand.

Do you find a large or small handle easier to hold? Or would you prefer to control your power source from the torch? Maybe you want to improve component accessibility through the wide range of gas nozzles and torch bodies? Regardless of your needs, our TIG welding torches offer you maximum flexibility.

The benefits



Modular design

In addition to different power categories, there are two handle versions that can be equipped with different operating elements and torch body versions.


Ergonomic and non-slip

The ergonomically designed handles of our new TIG welding torches protect users from fatigue, while soft components guarantee a non-slip, secure grip. The ball joint and the materials used make the hosepack very flexible and easy to handle, especially when the component is difficult to access.


Cost saving and sustainable

The welding torch does not have to be thrown away if requirements change or in the event of damage. Instead, modules can simply be replaced. The component can be changed directly on site, without the help of a service technician, saving resources, time, and costs.


Longer wearing part lifetimes

Perfect cooling right to the head of the torch body ensures reliable heat dissipation. This significantly increases the service life of the torch’s wearing parts.

Technology and ergonomics





Operation

Fronius welding torches represent the perfect blend of technology and ergonomics. The ergonomic handle with non-slip components sits comfortably and securely in your hand, allowing the torch to be guided with ease. Various operating concepts take care of the most varied welding requirements. Depending on the application, welders can choose between a standard or a small handle hosepack.

Standard handle
one handle for all versions

Simple conversion* from the user interface, only one screw needs to be unscrewed.

  1. UpDown
  2. JobMaster
  3. Potentiometer



*) Option only applies to standard handle

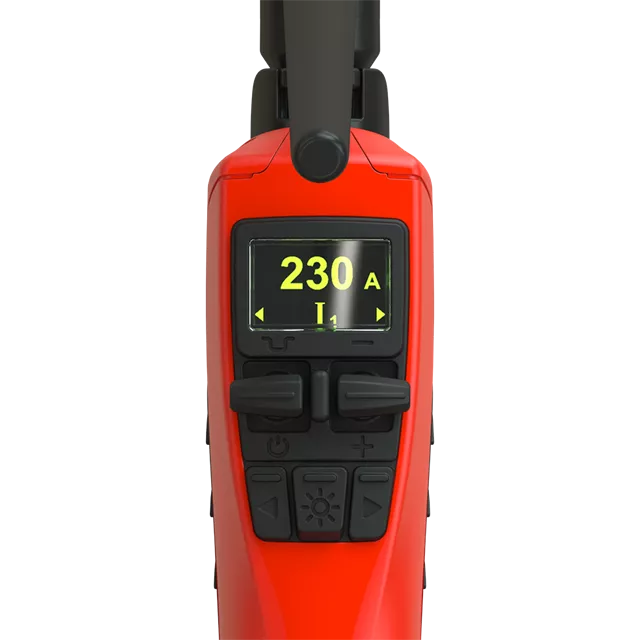

JobMaster
Start welding
1
Change the welding power using the up/down key (+/-)
2
LED can be used to light up the welding area
3
Cap-shaping in connection with the TIG AC welding process
4
Intermediate lowering in connection with 4-step operating mode (I1 > I2)
5
Display for reading essential parameters
6
Adjust the essential parameters such as main current, lowering current, or final current directly on the welding torch
7
Adjust the essential parameters such as main current, lowering current, or final current directly on the welding torch
8
1
Start welding
2
Change the welding power
using the up/down key (+/-)
3
LED
can be used to light up the welding area
4
Cap-shaping
in connection with the TIG AC welding process
5
Intermediate lowering
in connection with 4-step operating mode (I1 > I2)
6
Display
for reading essential parameters
7
Adjust the essential parameters
such as main current, lowering current, or final current directly on the welding torch
8
Adjust the essential parameters
such as main current, lowering current, or final current directly on the welding torch

Small Handle

The Small Handle is a convenient smaller alternative to the standard version. It is particularly well-suited to difficult-to-access weld locations in less power-intensive applications and is the more ergonomic choice for smaller hands. Despite its smaller size, it still offers a variety of different control options too.

Optimum accessibility

Optimized for professional use

Flexible welding made easy: the modular construction of the new TIG Multilock welding torch allows the torch to be customized to suit practically any customer requirement. Multiple torch cap sizes as well as a rotatable torch body available in several lengths help overcome challenging accessibility situations and make handling the torch a breeze.

Multilock
for fast torch body changes

  • Patented interface

    The torch body can be changed quickly, easily and without the need for tools – no matter what the welding task.
  • 360°

    The torch body can be turned through 360° for an optimum welding position every time.

Torch body lengths

Different torch body lengths ensure maximum flexibility while welding.

Torch caps

Depending on the application and component condition, torch caps of various sizes can be used.

Flexible torch bodies

The flexible torch bodies can be bent into the desired position for difficult to access welding points.*

Gas nozzles

More than 80 gas nozzles available.

* Tested under standardized test conditions according to a defined test procedure, gas-cooled torch bodies can be bent up to 1,000 times and water-cooled torch bodies up to 200 times.

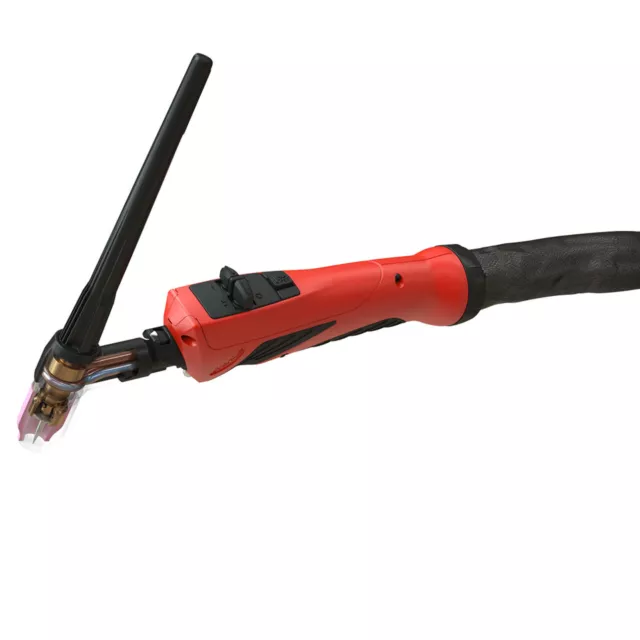

The welding torch in detail


System design
Water cooling The service life of the wearing parts is increased by cooling right to the head of the torch body
1
Torch body versions
  • Gas nozzle (push-on type) (A)
  • Gas nozzle (screw type) (P)

2
Patented interface

MULTILOCK

/ Quick and easy torch body changes

/ Torch body can be turned through 360°

/ Over 40 different torch bodies

3
Illumination

Illumination of the welding area before and after welding

4
Non-slip Soft components in the handle
5
User interface The control units can be replaced at any time with just a few simple steps.

6
Ball joint

7
Flexible hosepack For optimum handling – flexible and abrasion-resistant leather protection tube

8
CENTRAL CONNECTOR F/F++

/ Tool-free mounting

/ Shielding gas directly at the power connection

/ External water connections

/ Water-cooled bayonet connection for high performance

9
1
Water cooling
The service life of the wearing parts is increased by cooling right to the head of the torch body
2
Torch body versions
  • Gas nozzle (push-on type) (A)
  • Gas nozzle (screw type) (P)

3
Patented interface

MULTILOCK

/ Quick and easy torch body changes

/ Torch body can be turned through 360°

/ Over 40 different torch bodies

4
Illumination

Illumination of the welding area before and after welding

5
Non-slip
Soft components in the handle
6
User interface
The control units can be replaced at any time with just a few simple steps.

7
Ball joint

8
Flexible hosepack
For optimum handling – flexible and abrasion-resistant leather protection tube

9
CENTRAL CONNECTOR F/F++

/ Tool-free mounting

/ Shielding gas directly at the power connection

/ External water connections

/ Water-cooled bayonet connection for high performance

Welding package: TIG Dynamic Wire

Active wire control in TIG cold wire welding:

The innovative advantage of Fronius TIG DynamicWire, when compared to a conventional continuous wire feed in cold wire systems, lies in its automatic self-regulation.

The power source actively adjusts the wire speed to the welding behavior, torch position, and current conditions, even compensating automatically for component tolerances of up to 30%.

To TIG DynamicWire

Gas lens option

Better gas shield

  • Turbulence-free gas flow
  • Optimum weld seam quality
  • Gas savings of 1-2 l/min
  • Low oxidation in high alloymaterials

Options and accessories

Extension hosepack

Standard hosepacks can be extended by 10 meters with this option. The connection point is packed in a compact and robust pouch to prevent contamination and snagging.

Locking device multilock coupling

In order to prevent improper use of the Multilock System, hosepacks can be optionally equipped with a release lock.

No trigger

This option offers advantages when used with a foot controller or the touch HF ignition (the high-frequency ignition starts after the workpiece is touched by the electrode).

Button operation

Hosepacks can be converted to pushbutton operation for the digital device generation. Functions include start and end of welding as well as intermediate lowering.
